Concave & Convex Curves Flexible Led Display

O-FLEX Series:
O-FLEX Series Adaptive LED Tile allows for more creativity than ever before. Its lightweight and ability to curve, bend, fold and attach to virtually any metal surface makes it perfect for those installations that call for a non-traditional LED solution.  O-FLEX Series allows for seamless convex or concave LED designs where traditional flat panels will not work.

Key Features:
1. Easily Build Concave & Convex Curves.
2. Front& Rear serviceability with Magnet design.
3. Super thin design, only 0.25kg/Module.
4. Custom frames and sizing.

Product Features

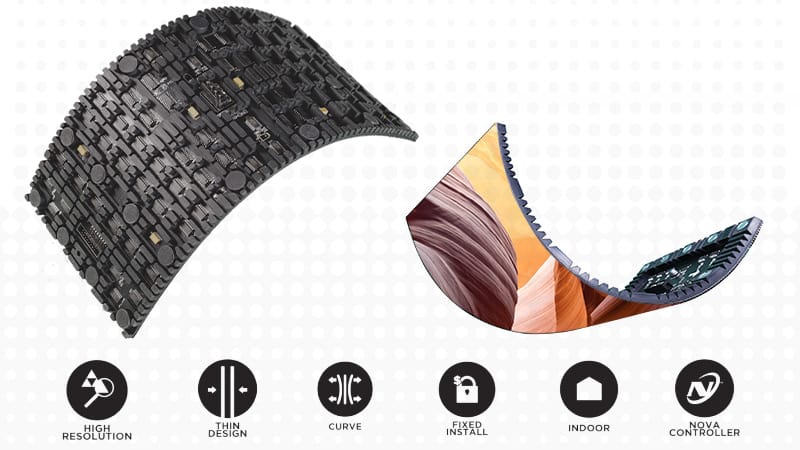

O-Flex Adaptive LED Panels

When traditional rigid or flexible LED panels fall short, our ultra-lightweight construction and industry-leading pixel density deliver unmatched display possibilities and break free the limitations of single-sided viewing.

concave & convex curves flexible led display

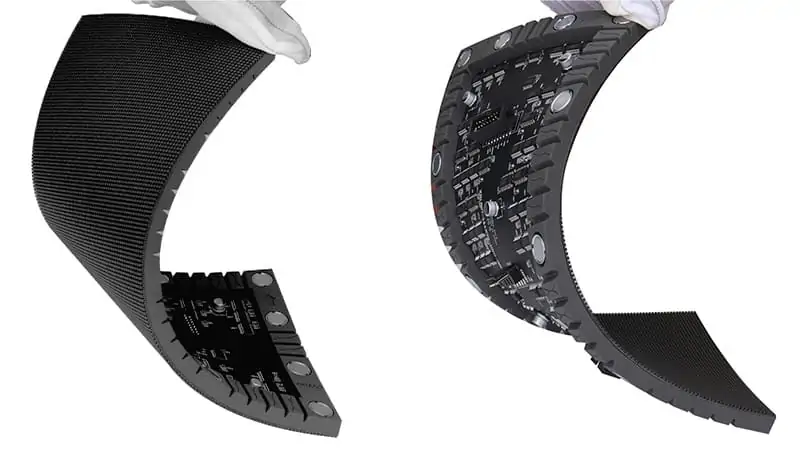

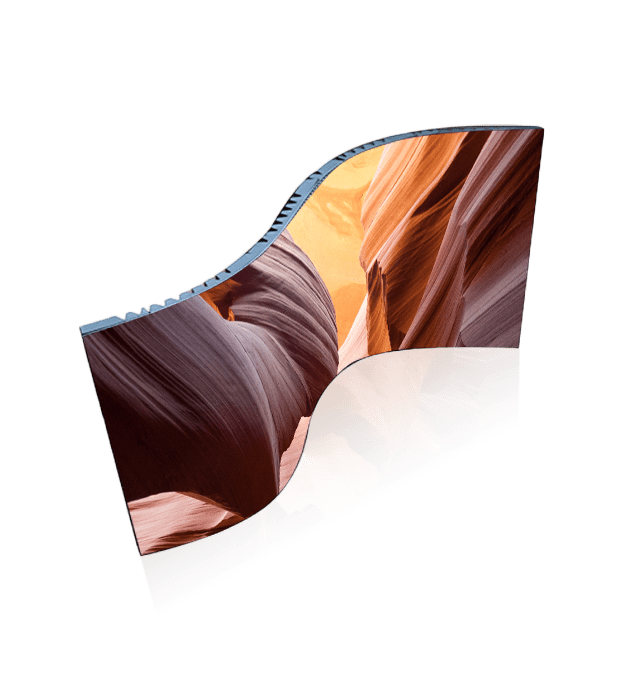

Effortlessly Craft Concave Or Convex Curves

From immersive concave installations to eye-catching convex displays, unlock unprecedented creative flexibility engineered for audience engagement demands multi-angle adaptability.



concave & convex curves flexible led display

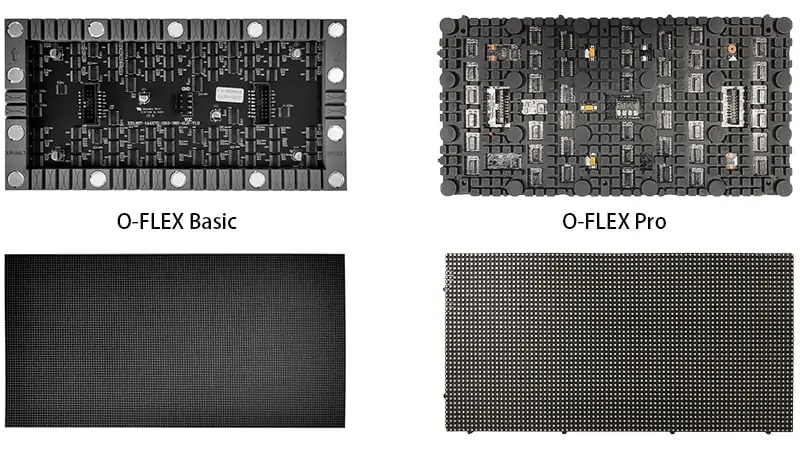

Optional GOB-Encapsulated LED Modules

Available with optional GOB polymer encapsulation for protection: Dust-proof & Be damp-proof,Scratch-Resistant Surface – Prevents LED bead from accidental impacts or abrasion.

concave & convex curves flexible led display

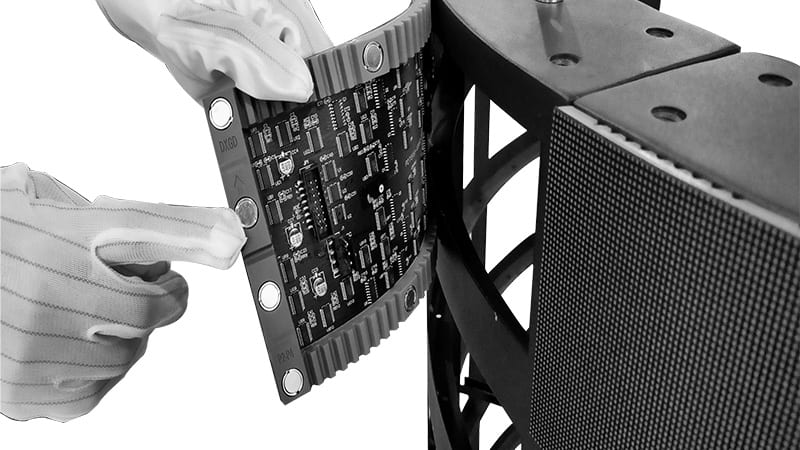

Front-Rear Serviceable LED Module

Module feature front/rear access that streamline cabinet servicing. The tool-free modular architecture enables rapid hot-swap replacement of individual components.

concave & convex curves flexible led display

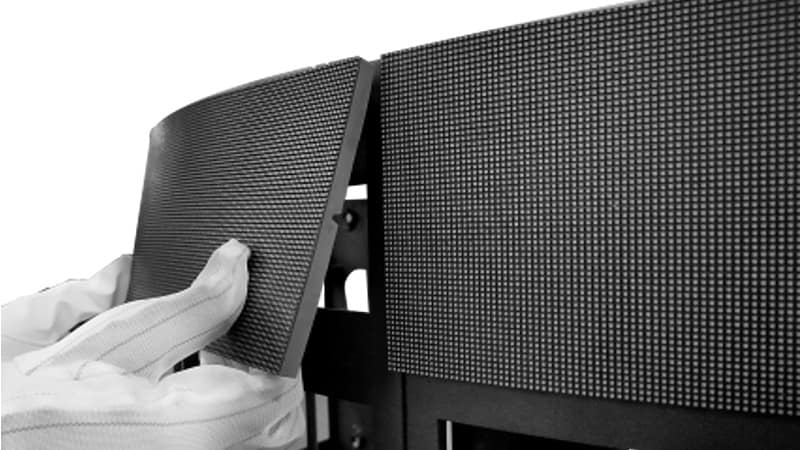

Installations with Magnetic Systems

Multi-pole magnetic arrays solution, Omni-Surface Compatibility: Instantly adheres to ferrous substrates (steel/iron/aluminum) without drilling.

concave & convex curves flexible led display

Dynamic Alignment Control

Height-adjustable magnetic holder, ±2mm vertical adjustment range for pixel-perfect alignment, transform your vision into reality through customizable panels, seamless integration.

concave & convex curves flexible led display

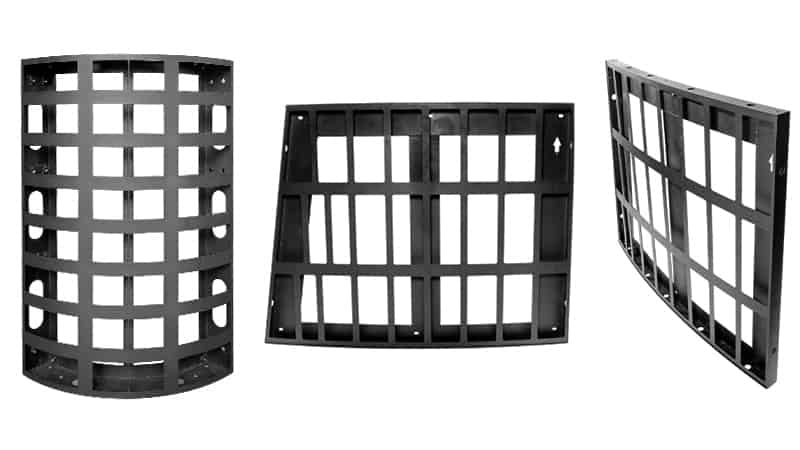

Customized Framing Solutions

Every project is one-of-a-kind, so is our O-FLEX framing system. Expertly engineered and segmented splicing , ensuring flawless execution for even the most complex designs and installations.

concave & convex curves flexible led display

Versatile Applications for Any Design

From standard shapes like cola cans, pillars, and globes to customized geometries. Whether you need mass-produced uniformity or one-of-a-kind creative displays, we deliver precision for all scenarios.

concave & convex curves flexible led display

Case Study
o flex case2
O-Flex Case Study
Videoo & Download

To ensure that you could make the correct solution, Please continue to read the following introduction and download our specifications.

If you can not find what you are looking for, please contact us.

Product Specification
Pixel Pith(mm) - Pro

1.667mm, 1.875mm, 2.5mm, 3mm, 4mm

Pixel Pith(mm) - Basic

2.5mm, 3.078mm, 4mm

Module Size(mm) - Pro

240*160mm, 270*120mm, 240*160mm, 240*120mm, 240*120mm

Module Size(mm) - Basic

320*160mm, 320*160mm, 240*120mm

Refresh Rate(Hz):

1920-3840HZ

Key Point:

Extremely lightweight and ability to curve, bend, fold and attach to virtually any metal surface makes it perfect for those installations that call for a non-traditional LED solution.

Product Specification
ITEM P1.6 Pro P1.8 Pro P2.5 Pro P3 Pro
Pixel Pitch 1.667mm 1.875mm 2.5mm 3mm
LED Lamp Bead Model SMD1010 SMD1010 SMD1515 SMD2020
Module Size(W*H) 240x160mm 270x120mm 240x160mm 240x120mm
Module Resolution(W*H) 144×96 144×64 96×64 80×40
Cabinet Size(W*H*D) Customizing
Density of Pixel (dots/m2) 360000 dots 284089 dots 160000 dots 11111 dots
Optimum viewing distance >1.5m >2m >2.5m >3m
Brightness(cd/m2) 600 nit 600 nit 1000 nit 1000 nit
Maintenance Way Front Access
Viewing angle 160°/160°
Protection level IP43
Gray scale 14bit
Driving method 1/32 1/32 1/32 1/20
Refresh rate 1920-3840Hz
Operating platform Windows XP /7/8/10
Signal Input HDMI、DVI
Operating Voltage AC:110V~240V、50~60Hz
Maximum Power(W/m2) 400 550 440 390
Average power(W/m2) 160 220 170 150
Continuous working time ≥7×24hrs
Service life 100000Hours
Operating environment -20℃~50℃ 10%~90%RH
ITEM P4 Pro P2.5 Basic P3 Basic P4 Basic
Pixel Pitch 4mm 2.5mm 3.078mm 4mm
LED Lamp Bead Model SMD2020 SMD1515 SMD1515 SMD2020
Module Size(W*H) 240x120mm 320x160mm 320x160mm 240x120mm
Module Resolution(W*H) 144×96 144×64 96×64 80×40
Cabinet Size(W*H*D) Customizing
Density of Pixel (dots/m2) 62500 dots 160000 dots 105625 dots 62500 dots
Optimum viewing distance >4m >2.5m >3m >4m
Brightness(cd/m2) 800 nit 850 nit 850 nit 800 nit
Maintenance Way Front Access
Viewing angle 160°/160°
Protection level IP43
Gray scale 14bit
Driving method 1/15 1/32 1/26 1/15
Refresh rate 1920-3840Hz
Operating platform Windows XP /7/8/10
Signal Input HDMI、DVI
Operating Voltage AC:110V~240V、50~60Hz
Maximum Power(W/m2) 350 480 440 450
Average power(W/m2) 140 190 170 180
Continuous working time ≥7×24hrs
Service life 100000Hours
Operating environment -20℃~50℃ 10%~90%RH
